Terminating swa picture guide


  • Please log in to reply
51 replies to this topic

#1 M107

M107

    Billy-the-Kid

  • Gold Member
  • 4,588 posts
  • LocationBerkshire
  • Skills:Domestic, Commercial, Vehicle
  • Training:Other
  • Employment:Self Employed, Employed
  • Country:United Kingdom
Offline

Posted 06 July 2011 - 08:34 PM

Had to terminate some swa so thought I'd snap shot each step, seen as the question was asked on how to terminate the stuff.

Only 4mm 3c so fill yer boots......

Put boot & clench nut onto cable (Tip: use tape to hold clear of work area).

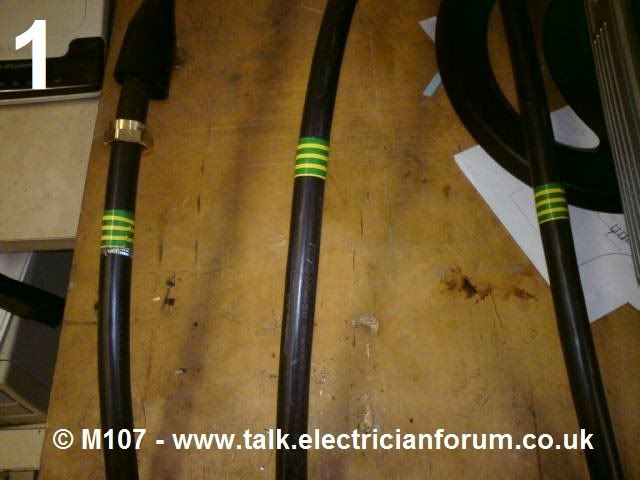

Mark where you want to terminate the swa with tape.

Posted Image

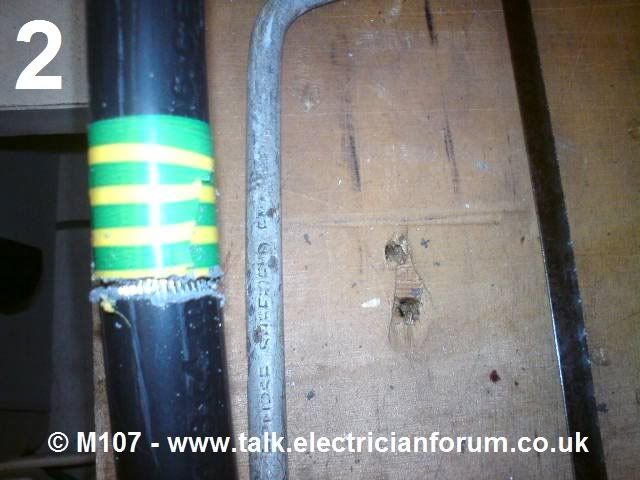

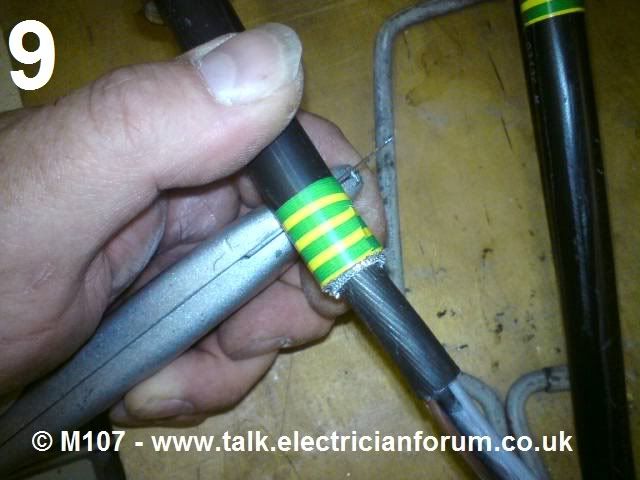

Use a hacksaw & score the armour, using the tape as a guide.

Posted Image


Use a knife & strip the outer sheath.

Posted Image

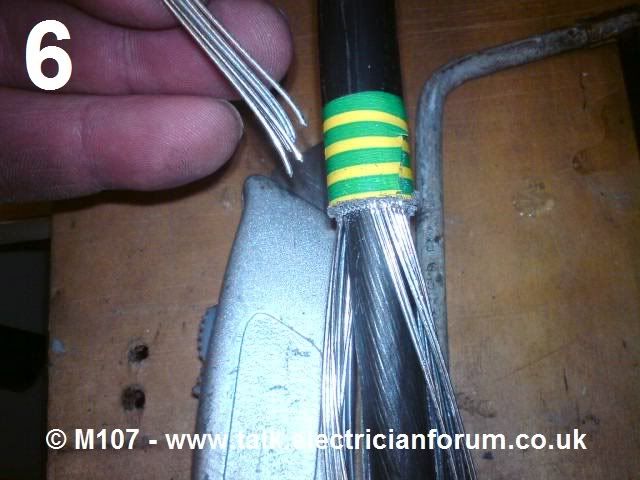

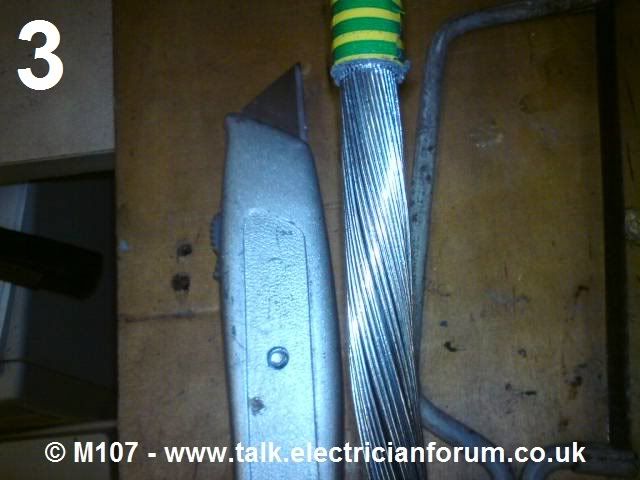

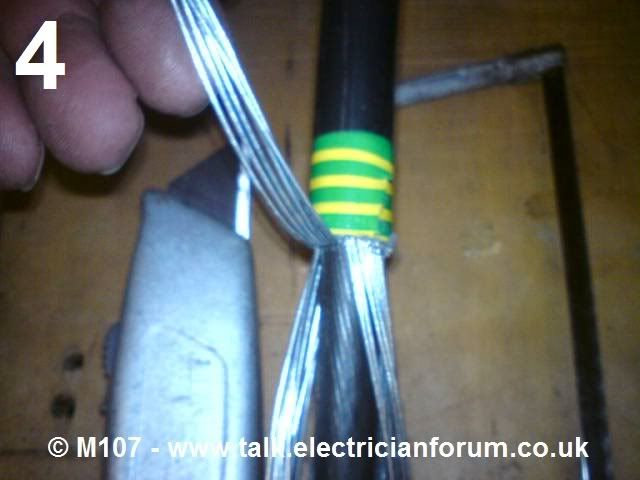

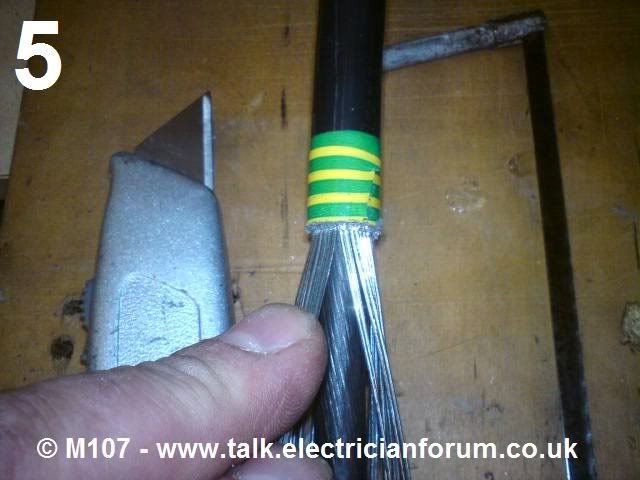

Bend the armour back & forth (tip: small groups & bend at 90deg to the score) until the strands snap off.

Posted Image

Posted Image

Posted Image

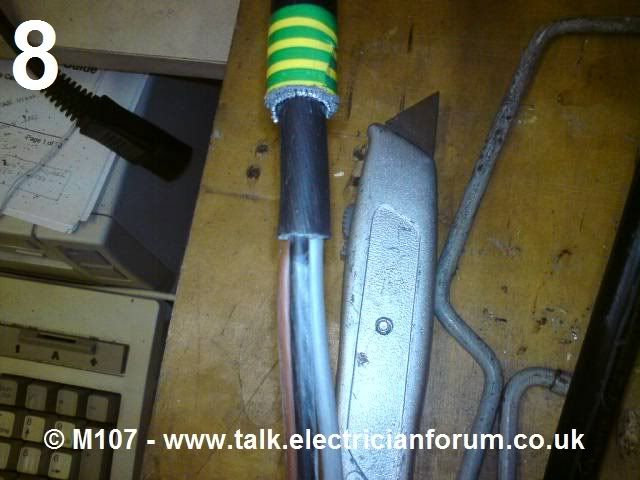

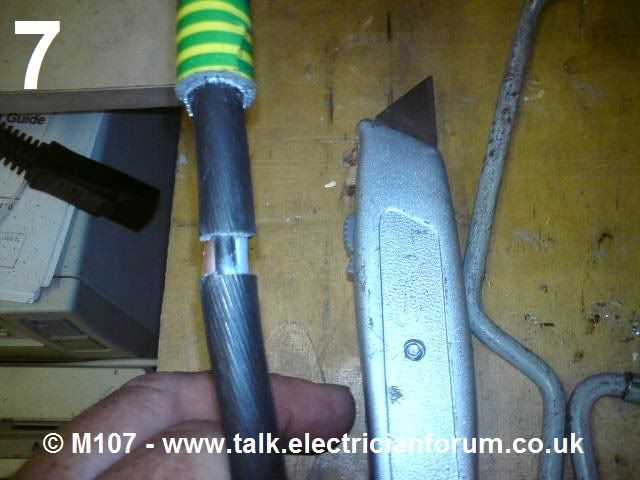

Score the inner sheath bend back & forth until it splits & seperates, pull clear (Tip:twisting clock wise while pulling it will come off easier).

Posted Image

Posted Image

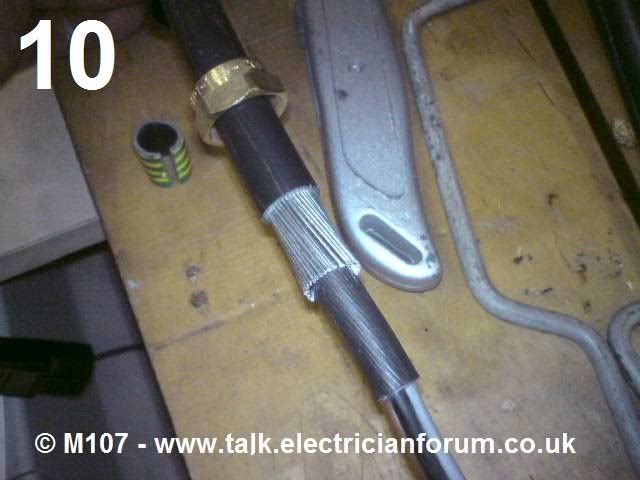

Score round lower edge of tape & remove outer sheath.

Posted Image

Posted Image


Hold cable cores & rotate this will push out & flair the armour strands.

http://i299.photobucket.com/albums/mm286/electricianforum/M107/11-M107-How-to-terminate-make-off-SWA-talkelectricianforumcouk-1.jpg

http://i299.photobuc...forumcouk-1.jpg


Offer up to the gland & screw on clench nut.

http://i299.photobucket.com/albums/mm286/electricianforum/M107/13-M107-How-to-terminate-make-off-SWA-talkelectricianforumcouk-1.jpg


Push up shroud.

http://i299.photobucket.com/albums/mm286/electricianforum/M107/14-M107-How-to-terminate-make-off-SWA-talkelectricianforumcouk-1.jpg


Jobs a goodun

http://i299.photobuc...forumcouk-1.jpg


Hope thats of some help to anybody who is learning......

Rest of the pics
CU to go here

http://i299.photobucket.com/albums/mm286/electricianforum/M107/M107-How-to-terminate-make-off-SWA-talkelectricianforumcouk-BEFORECU-1.jpg


Wired

http://i299.photobucket.com/albums/mm286/electricianforum/M107/M107-How-to-terminate-make-off-SWA-talkelectricianforumcouk-ITCU.jpg

http://i299.photobuc...mcouk-ITCU1.jpg

#2 steptoe

steptoe

    of course Im wrong, ask my wife™

  • Gold Member
  • 19,508 posts
  • LocationGtr. Manchester
  • Skills:Domestic, Commercial, Industrial, Agricultural, Vehicle, Other
  • Training:Time Served
  • Employment:Self Employed
  • Country:United Kingdom
Online

Posted 06 July 2011 - 08:41 PM

mmmm, wonder if they are approved earthing bolts........

#3 m4tty

m4tty

    Scaredy cat™

  • Gold Member
  • 5,546 posts
  • Country:United Kingdom
Offline

Posted 06 July 2011 - 08:46 PM

Your the man. Scoobed

#4 Lusk

Lusk

    Junior Member

  • Bronze Member
  • 6 posts
  • Country:United Kingdom
Offline

Posted 08 July 2011 - 11:55 AM

Good post.
An old panel wirer showed me that tip for cutting the armour.

#5 Lee Sparks

Lee Sparks

    Member

  • Bronze Member
  • 94 posts
  • LocationSurrey
  • Skills:Domestic, Training, Inspect &Test
  • Training:Short Course, Other
  • Employment:Self Employed, Mature Trainee
  • Country:United Kingdom
Offline

Posted 13 July 2011 - 07:41 PM

Many thanks for the refresher matey!

Tell you what, i hope to get as neat as that with my wireing eventuly.

#6 Theorysparky

Theorysparky

    Domestic Electrician

  • Silver Member
  • 4,203 posts
  • Country:United Kingdom
Offline

Posted 14 July 2011 - 07:42 AM

thanks for that,,, not done it in a while

question.....

do you guys always have the end stuff already located (in this case the cu) ?????

i have previously 'made off' then located to the box

think i may have made hard work off it !!!!!!

#7 Andy™

Andy™

    ©The Original™

  • Gold Member
  • 382 posts
  • LocationS. Tyneside
  • Skills:General All Rounder, Domestic, Commercial, Vehicle
  • Training:Time Served, Apprenticeship
  • Employment:Self Employed
  • Country:England
Offline

Posted 14 July 2011 - 11:34 AM

depends. sometimes put gland onto cable, then into enclosure then locknut. other times glad is fitted to enclosure, then SWA into that

you dont really have a choice when your going into a galv box etc though

#8 mikep

mikep

    Senior Member

  • Bronze Member
  • 412 posts
  • Skills:General All Rounder, Domestic
  • Employment:Self Employed
  • Country:United Kingdom
Offline

Posted 17 July 2011 - 07:31 PM

Nice little thread.


I do the same with the tape to hold it together but use a adjustable plumbers pipe cutter to roll round the armoured to create a score in the steel wire then do the bending, works really well, stops you sawing your fingers off.

#9 chacorpat

chacorpat

    Junior Member

  • Bronze Member
  • 14 posts
Offline

Posted 27 July 2011 - 06:46 PM

Photos 7&8, usually the part of making off an SWA gland that drives ma bananas! Very rarely that inner sheath comes off easily. It's usually moulded into the cores and won't pull off!

#10 Lee321

Lee321

    Distinguished Member

  • Bronze Member
  • 2,131 posts
Offline

Posted 27 July 2011 - 06:50 PM

Photos 7&8, usually the part of making off an SWA gland that drives ma bananas! Very rarely that inner sheath comes off easily. It's usually moulded into the cores and won't pull off!


cheap swa. it has no or very little chalk in

#11 Stevie h

Stevie h

    Senior Member

  • Bronze Member
  • 283 posts
Offline

Posted 02 August 2011 - 11:19 PM

Top post once again M107, very tidy work .... I always use external glands with the olive , I think they get a better bite on the armoured.

Cheers

Ste

#12 Grandfortune

Grandfortune

    Junior Member

  • Bronze Member
  • 5 posts
Offline

Posted 11 August 2011 - 09:45 PM

very nice

#13 athej

athej

    Junior Member

  • Bronze Member
  • 5 posts
Offline

Posted 17 August 2011 - 08:28 PM

Use a Bladerunner SWA Stripper

#14 M107

M107

    Billy-the-Kid

  • Gold Member
  • 4,588 posts
  • LocationBerkshire
  • Skills:Domestic, Commercial, Vehicle
  • Training:Other
  • Employment:Self Employed, Employed
  • Country:United Kingdom
Offline

Posted 17 August 2011 - 08:41 PM

I have one used it a couple of times (it is probably in the bottom of the tool bag) but old habbits die hard & for those still learning the trade it doesnt hurt to know how to do it the old way.....just incase you cant find the bladerunner thingy.

#15 cueball1978

cueball1978

    Junior Member

  • Bronze Member
  • 12 posts
  • Skills:Domestic, Commercial, Inspect &Test
  • Training:Apprenticeship
  • Employment:Self Employed
  • Country:United Kingdom
Offline

Posted 23 September 2012 - 03:48 PM

Hi there
Am a student lecky and was wondering did you wire the swa straight to the MCB with no connector block in an adaptable box?. And just checking, I'm using 4mm swa and I need to connect to a 32A mcb?

#16 gavindrummond

gavindrummond

    Senior Member

  • Bronze Member
  • 376 posts
  • LocationSouth Wales
  • Skills:Domestic, Industrial, Panel Building
  • Training:Time Served
  • Employment:Self Employed, Employed, Mature Trainee
  • Country:United Kingdom
Offline

Posted 23 September 2012 - 03:56 PM

I watched a really good tip the other day on you tube for doing this. Buy your self a plumbers copper tubing cutter put that around the swa and turn it whilst righting it leaves perfect termination of the steel armoured.

#17 Andy™

Andy™

    ©The Original™

  • Gold Member
  • 382 posts
  • LocationS. Tyneside
  • Skills:General All Rounder, Domestic, Commercial, Vehicle
  • Training:Time Served, Apprenticeship
  • Employment:Self Employed
  • Country:England
Offline

Posted 23 September 2012 - 04:16 PM

there are tools like that specifically designed for SWA, although i only use a hacksaw and manage fine with that

#18 wicksy

wicksy

    Baaaaaad Boy

  • Bronze Member
  • 233 posts
  • Country:United Kingdom
Offline

Posted 23 September 2012 - 05:27 PM

Blade runner only works on the small cables so I would advice using the hack saw.
Also if your terminating the swa and it has a bend in it then bend it first and then follow the steps above :D
Good post
:D

#19 Zeespark

Zeespark

    Distinguished Member

  • Gold Member
  • 3,759 posts
  • LocationViva La Chesterfield, United Kingdom
  • Skills:General All Rounder, Domestic
  • Training:Other
  • Employment:Other
  • Country:United Kingdom
Offline

Posted 23 September 2012 - 06:15 PM

Wicksy, apparently there is now a bigger version of Blade Runner out, so can do more cables.

AndyGuinness

---------- Post Auto-Merged at 19:15 ---------- Previous post was made at 19:08 ----------

http://www.discount-...hnik/wsbr28.pdf

Bottom of the page - does upto 95mm apparently.

AndyGuinness

#20 SLIPSHOD & SLAPDASH

SLIPSHOD & SLAPDASH

    Distinguished Member

  • Bronze Member
  • 6,387 posts
  • LocationCloud Cuckoo Land
  • Skills:General All Rounder, Domestic, Commercial, Industrial, Other
  • Training:Time Served, Apprenticeship
  • Employment:Self Employed
  • Country:United Kingdom
Offline

Posted 23 September 2012 - 07:10 PM

30 years ago we used to put a snapped off end of a hacksaw blade into a plumbers ringing tool to use as a 'Bladerunner'. Nowt new.
